• Efficient plane-parallel grinding of samples for testing compressive strength
• Precise preparation of standardized concrete test specimens

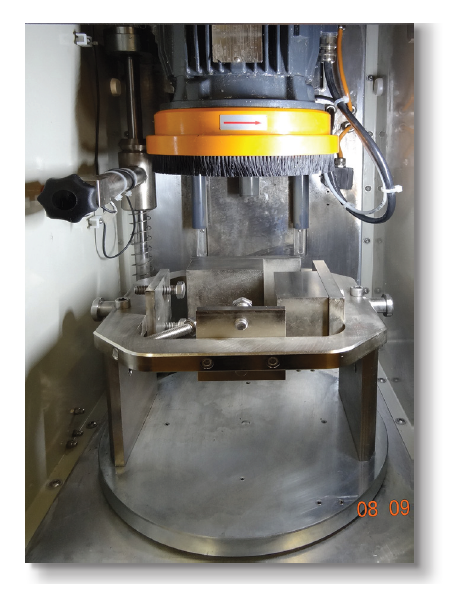

• Assembly of different clamping frames for different applications
• Easy handling• Low maintance

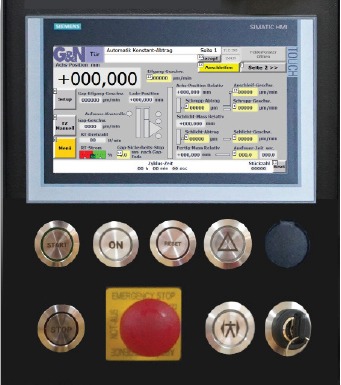

• HMI panel Siemens TP 700 - Comfort
• Loading and unloading device
• Coolant supply
• Automatic fine adjustment
• Hand shower
Technical data
| Motor | 3,3 kW |  |
| Connecting power | 4 kVA | |
| Spindle speed | 2850 min-1 | |
| Rotary table | ||
| Diameter | ø 320 mm | |
| Speed | 5 -30 min-1 | |
| Plane parallelism according | EN 12390-1 | |
| Grinding wheel | ø 200 mm | |
| Grinding height | 320 mm | |
| Fine infeed | ||
| Range | 300 mm | |
| min. step | 5 µm | |
| Total weight | 410 kg | |
| Space requirement LxBxH | 1148x1133x1744 mm |
